CARBOVIA EXIM / PRODUCT DETAILS

Coal Based Activated Carbon

A versatile material for industrial purification. Selection depends on contact time, contaminants and operating conditions.

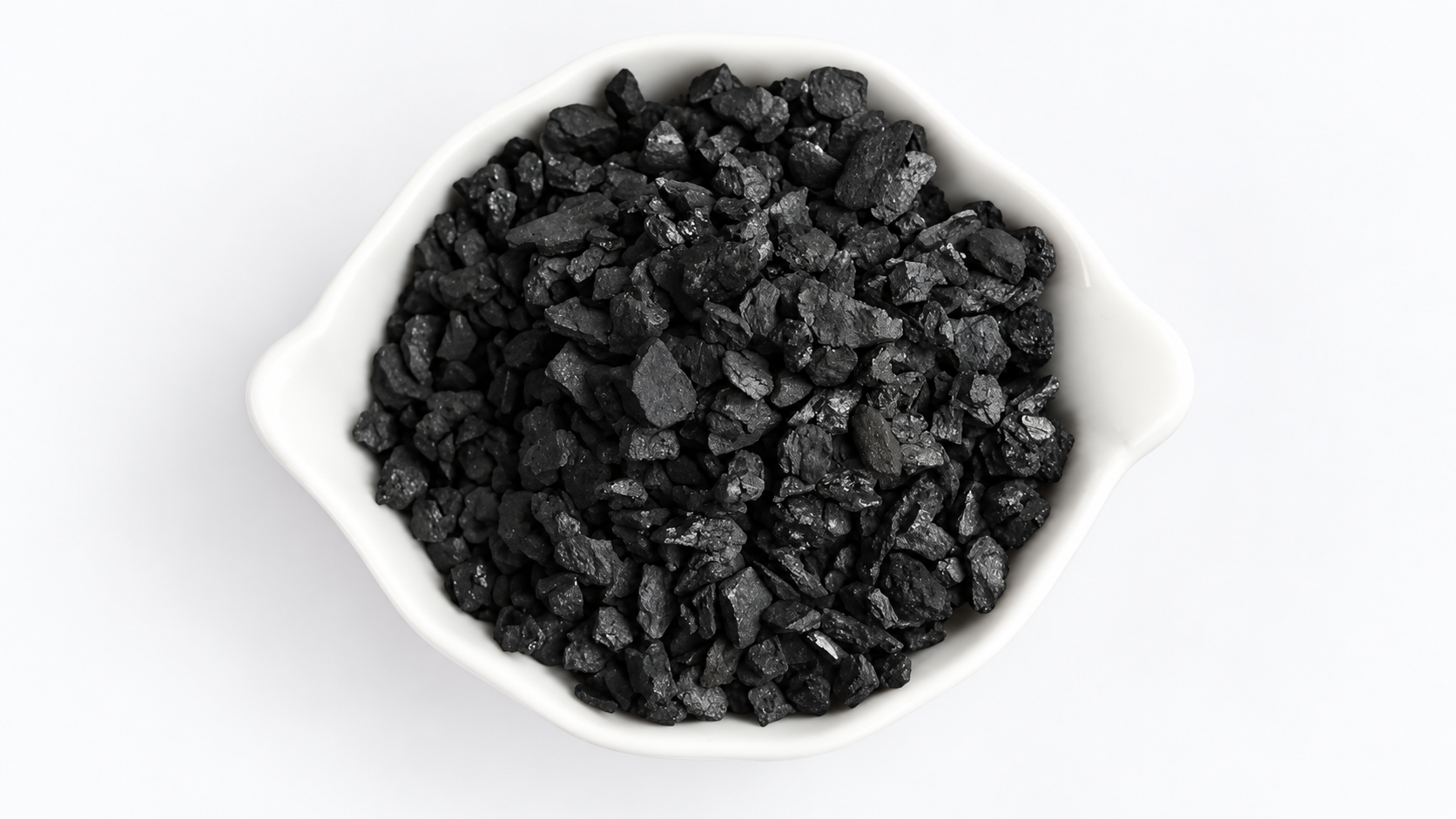

Black coal-based activated carbon granules in a white bowl

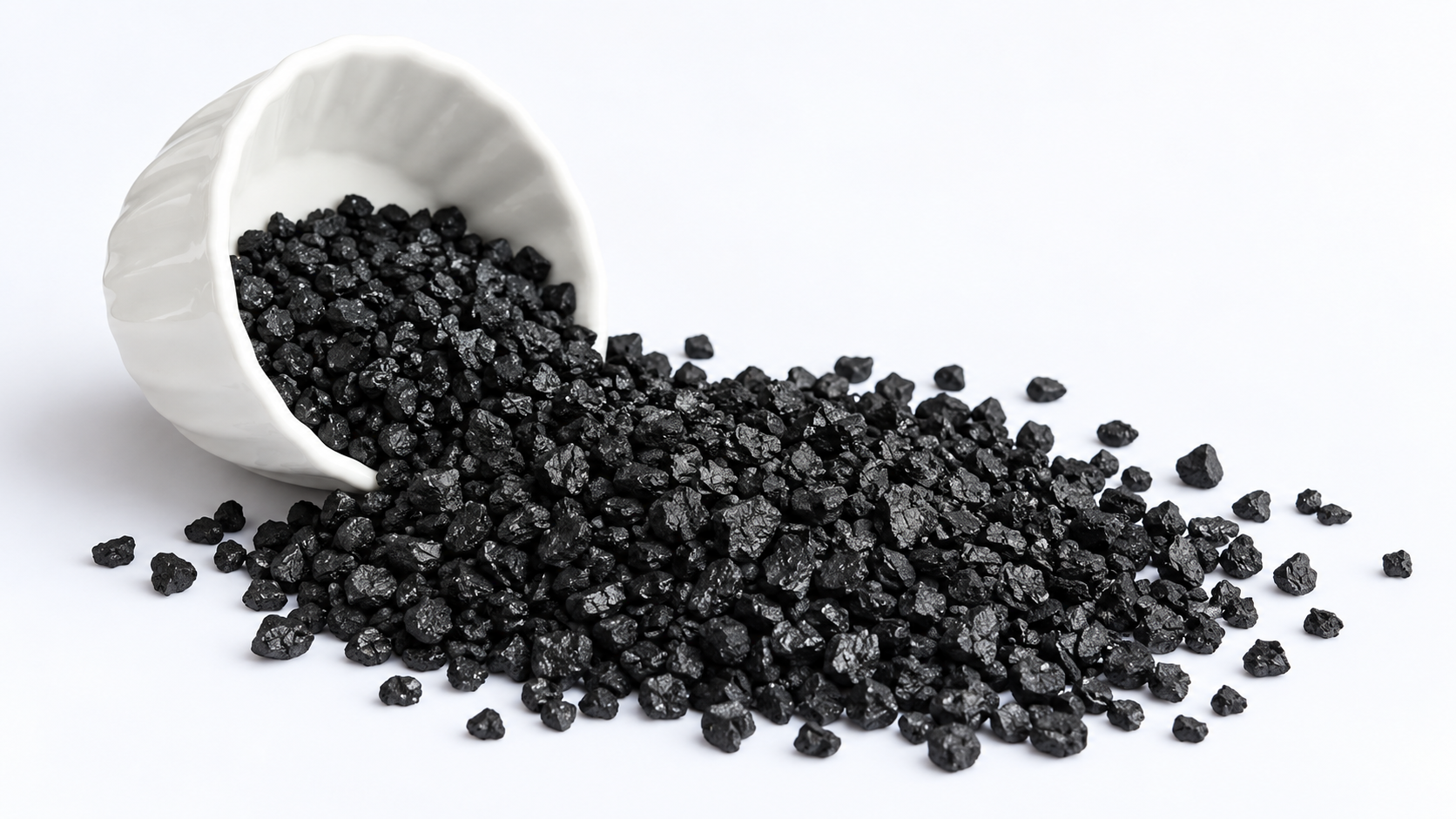

Coal-based activated carbon spilling from a white bowl

APPLICATION-LED MATERIAL SELECTION

Designed around your requirements.

Common applications

Drinking and process water filtration
Wastewater treatment (ETP and STP)
Industrial water treatment
RO pretreatment
Dechlorination
Air and gas purification

Discuss your specifications

Share your required particle size or dimensions, adsorption performance, purity, quantity and delivery destination. Grade specifications and availability are confirmed for each enquiry.

Enquire about this product Request this sample

PRODUCT INFORMATION

Make an informed selection.

Review the material, application and system requirements together. Ask our team for grade-specific technical documentation.

Material selection overview
Raw material	Coal
Available sizes	4 × 8 6 × 12 8 × 16 8 × 30 16 × 32 30 × 60
Iodine grades	600 IV and 800 IV
Selection considerations	Pore structure, particle size, purity and contact time
Typical applications	Water treatment, RO pretreatment, dechlorination and air purification
Grade specifications	Confirmed for your selected grade and enquiry
Technical documents	Request available technical data and safety information

Request technical information

SIZES & GRADES

Coal carbon grade details.

Compare six sizes in 600 IV and 800 IV grades using the supplied Certificates of Analysis. These results relate to the identified sample batches; confirm the current batch specifications with our team.

4 × 8 US MESH · 600 IVView analysis

Coal-based activated carbon in 4 × 8 US mesh with 600 IV designation. Supplied in 25 Kgs packs.

Certificate CE/021/2026 · Analysis date 12.07.2026

4 × 8 US MESH · 600 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 4	%Ma	ASTM D 2862	4
Particle Size Distribution – -8	%	ASTM D 2862	8
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.600
Ball Pan Hardness	%	ASTM D 3802	91.00
Iodine Number	mg/g	ASTM D 4607	600 – 620IV
Ash Content	%	ASTM D 2866	19-20
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	10

Enquire about this grade

6 × 12 US MESH · 600 IVView analysis

Coal-based activated carbon in 6 × 12 US mesh with 600 IV designation. Supplied in 25 Kgs packs.

Certificate CE/035/2026 · Analysis date 17.07.2026

6 × 12 US MESH · 600 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 6	%Ma	ASTM D 2862	6
Particle Size Distribution – -12	%	ASTM D 2862	12
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.610
Ball Pan Hardness	%	ASTM D 3802	91.68
Iodine Number	mg/g	ASTM D 4607	600 – 620IV
Ash Content	%	ASTM D 2866	19-20
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	11

Enquire about this grade

8 × 16 US MESH · 600 IVView analysis

Coal-based activated carbon in 8 × 16 US mesh with 600 IV designation. Supplied in 25 Kgs packs.

Certificate CE/010/2026 · Analysis date 06.07.2026

8 × 16 US MESH · 600 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 8	%Ma	ASTM D 2862	8
Particle Size Distribution – -16	%	ASTM D 2862	16
Moisture Content	%	ASTM D 2867	10
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.600
Ball Pan Hardness	%	ASTM D 3802	90.76
Iodine Number	mg/g	ASTM D 4607	600 – 620IV
Ash Content	%	ASTM D 2866	18-19
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	12

Enquire about this grade

8 × 30 US MESH · 600 IVView analysis

Coal-based activated carbon in 8 × 30 US mesh with 600 IV designation. Supplied in 25 Kgs packs.

Certificate CE/015/2026 · Analysis date 10.07.2026

8 × 30 US MESH · 600 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 8	%Ma	ASTM D 2862	8
Particle Size Distribution – -30	%	ASTM D 2862	30
Moisture Content	%	ASTM D 2867	10
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.600
Ball Pan Hardness	%	ASTM D 3802	91.50
Iodine Number	mg/g	ASTM D 4607	600 – 620IV
Ash Content	%	ASTM D 2866	18-19
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	11

Enquire about this grade

16 × 32 US MESH · 600 IVView analysis

Coal-based activated carbon in 16 × 32 US mesh with 600 IV designation. Supplied in 25 Kgs packs.

Certificate CE/049/2026 · Analysis date 28.07.2026

16 × 32 US MESH · 600 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 16	%Ma	ASTM D 2862	16
Particle Size Distribution – -32	%	ASTM D 2862	32
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.610
Ball Pan Hardness	%	ASTM D 3802	91.68
Iodine Number	mg/g	ASTM D 4607	600 – 620IV
Ash Content	%	ASTM D 2866	19-20
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	11

Enquire about this grade

30 × 60 US MESH · 600 IVView analysis

Coal-based activated carbon in 30 × 60 US mesh with 600 IV designation. Supplied in 25 Kgs packs.

Certificate CE/045/2026 · Analysis date 22.07.2026

30 × 60 US MESH · 600 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 30	%Ma	ASTM D 2862	30
Particle Size Distribution – -60	%	ASTM D 2862	60
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.610
Ball Pan Hardness	%	ASTM D 3802	91.68
Iodine Number	mg/g	ASTM D 4607	600 – 620IV
Ash Content	%	ASTM D 2866	19-20
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	11

Enquire about this grade

4 × 8 US MESH · 800 IVView analysis

Coal-based activated carbon in 4 × 8 US mesh with 800 IV designation. Supplied in 25 Kgs packs.

Certificate CE/022/2026 · Analysis date 12.07.2026

4 × 8 US MESH · 800 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 4	%Ma	ASTM D 2862	4
Particle Size Distribution – -8	%	ASTM D 2862	8
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.580
Ball Pan Hardness	%	ASTM D 3802	91.68
Iodine Number	mg/g	ASTM D 4607	800 – 820IV
Ash Content	%	ASTM D 2866	15-18
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	10

Enquire about this grade

6 × 12 US MESH · 800 IVView analysis

Coal-based activated carbon in 6 × 12 US mesh with 800 IV designation. Supplied in 25 Kgs packs.

Certificate CE/036/2026 · Analysis date 17.07.2026

6 × 12 US MESH · 800 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 6	%Ma	ASTM D 2862	6
Particle Size Distribution – -12	%	ASTM D 2862	12
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.580
Ball Pan Hardness	%	ASTM D 3802	92.68
Iodine Number	mg/g	ASTM D 4607	800 – 820IV
Ash Content	%	ASTM D 2866	16-18
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	10

Enquire about this grade

8 × 16 US MESH · 800 IVView analysis

Coal-based activated carbon in 8 × 16 US mesh with 800 IV designation. Supplied in 25 Kgs packs.

Certificate CE/011/2026 · Analysis date 06.07.2026

8 × 16 US MESH · 800 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 8	%Ma	ASTM D 2862	8
Particle Size Distribution – -16	%	ASTM D 2862	16
Moisture Content	%	ASTM D 2867	8
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.600
Ball Pan Hardness	%	ASTM D 3802	90.76
Iodine Number	mg/g	ASTM D 4607	800 – 820IV
Ash Content	%	ASTM D 2866	16-18
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	11

Enquire about this grade

8 × 30 US MESH · 800 IVView analysis

Coal-based activated carbon in 8 × 30 US mesh with 800 IV designation. Supplied in 25 Kgs packs.

Certificate CE/061/2026 · Analysis date 29.07.2026

8 × 30 US MESH · 800 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 8	%Ma	ASTM D 2862	8
Particle Size Distribution – -30	%	ASTM D 2862	30
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.590
Ball Pan Hardness	%	ASTM D 3802	92.68
Iodine Number	mg/g	ASTM D 4607	800 – 820IV
Ash Content	%	ASTM D 2866	15-18
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	10

Enquire about this grade

16 × 32 US MESH · 800 IVView analysis

Coal-based activated carbon in 16 × 32 US mesh with 800 IV designation. Supplied in 25 Kgs packs.

Certificate CE/059/2026 · Analysis date 28.07.2026

16 × 32 US MESH · 800 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 16	%Ma	ASTM D 2862	16
Particle Size Distribution – -32	%	ASTM D 2862	32
Moisture Content	%	ASTM D 2867	11
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.580
Ball Pan Hardness	%	ASTM D 3802	91.68
Iodine Number	mg/g	ASTM D 4607	800 – 820IV
Ash Content	%	ASTM D 2866	16-18
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	11

Enquire about this grade

30 × 60 US MESH · 800 IVView analysis

Coal-based activated carbon in 30 × 60 US mesh with 800 IV designation. Supplied in 25 Kgs packs.

Certificate CE/046/2026 · Analysis date 22.07.2026

30 × 60 US MESH · 800 IV — certificate results
Parameter	Unit	Test method	Result
Particle Size Distribution – + 30	%Ma	ASTM D 2862	30
Particle Size Distribution – -60	%	ASTM D 2862	60
Moisture Content	%	ASTM D 2867	8
Apparent Density	g/cc	ASTM D 2854	0.545 – 0.590
Ball Pan Hardness	%	ASTM D 3802	92.00
Iodine Number	mg/g	ASTM D 4607	800 – 820IV
Ash Content	%	ASTM D 2866	16-18
Extractable pH Value	pH	ASTM D 3838	8 – 10
Volatile Matter	%	ASTM D 3175	10

Enquire about this grade
